Pad Mounted Substation

(capacity 100 KVA - 5000 KVA)

Pad Mounted Substation

We offers a complete line of liquid-filled Three Phase Pad-Mounted distribution transformers that meet applicable ANSI®/IEEE® standards specially designed for European and US Market.

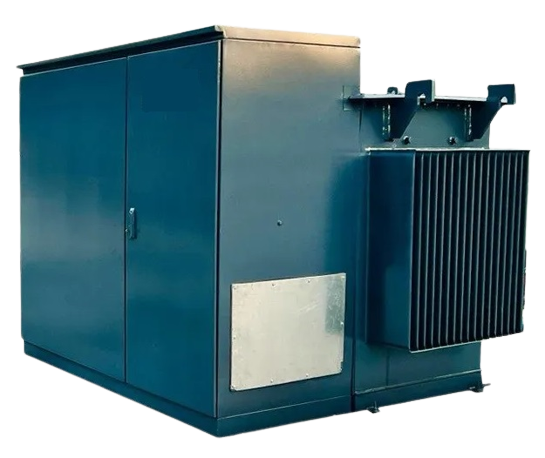

With high voltages up to 34.5 kV and ratings up to 5,000 kVA (ONAN), compartmental-type Three Phase Pad-Mounted Commercial Transformers are designed for outdoor installation on a concrete pad and provide underground power distribution to commercial, industrial and institutional loads. High-grade materials, combined with sophisticated engineering design systems, are key elements of a transformer that will deliver years of highly reliable service.

Features:-

  • 60 Hz operation
  • Transformer tank welded from cover to base
  • 65°C average winding rise
  • Permanent nameplate
  • Radial & loop feed arrangements
  • One-inch drain valve and sampler
  • Dead and live front type of HV terminals
  • Automatic pressure-relief valve
  • Plug-in type HV bushing
  • Tap changer with (2) 2.5% full capacity taps above Fl HV BIL 45 — 150 kV (Dead Front) 200 kV (Live Front). and below nominal
  • Painted olive-green color or as per Customer requirement
  • High-voltage door, which can be opened only after the low-voltage door is opened
  • Designed, manufactured and tested in accordance with the latest ANSI/IEEE standards
  • Rigid steel partition

Range We Offer:

  • Capacity : From 100 KVA to 5000 KVA
  • Voltage Class : 12.47 kV, 13.2kV, 13.8kV, 34.5kV (Any Special Customized Class as per requirement)
  • Low Voltage : 380 V, 400 V, 415 V, 433 V, 440 V, 600 V & 690 V (Any Special Customized Class as per requirement)
  • Cooling : ONAN
