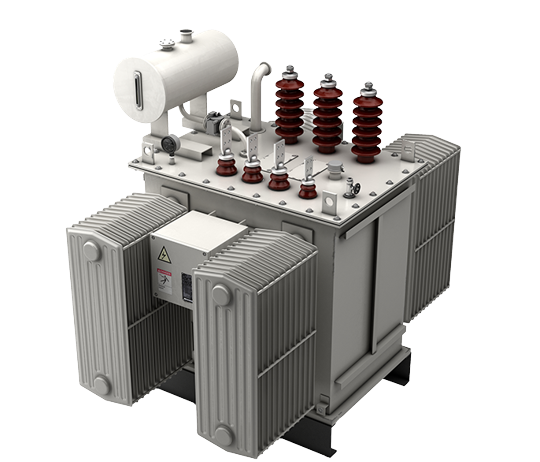

Distribution Transformer

( capacity 25 KVA - 5000 KVA)

ISI Marked Distribution Transformer

Distribution Transformers made of Cold Rolled Grain Oriented (CRGO), Double Wound type can be supplied both liquid filled (Oil or Synthetic Ester e.g. Midel) or dry type (Cast Resin). Comprehensive range of Distribution Transformer provides many solution of choice such as cost effective, fully compliant, matching requirements, etc. Our Transformers are designed to comply with and satisfy the high demands of modern distribution networks. They are manufactured in accordance with national and international standards.

Short Time Delivery of Transformers

We thrive to deliver Distribution Transformers of all standard rating, in shortest possible lead time of 2-3 weeks at a premium cost and 6 weeks at a nominal cost. Such Transformers come with suitable standard accessories and applicable optional accessories as per basic standard specification.
When additional accessories such as HV or LV Switchgear, Transducer for Digital Indication, etc., are required to be fitted with the Transformer, lead time varies depending on vendor delivery.
For all other non-standard ratings, our typical lead times are between 5 to 6weeks based on production plan at that time.

Standard Accessories:

    1. 25 KVA
    2. 63 KVA
    3. 100 KVA
    4. 160 KVA
    5. 200 KVA
    6. 250 KVA
    7. 315 KVA
    8. 400 KVA
    9. 500 KVA
    10. 630 KVA
    11. 800 KVA
    12. 1000 KVA
    13. 1250 KVA
    14. 1600 KVA
    15. 2000 KVA
    16. 2500 KVA


Standard Accessories:

    • HV Off-Circuit Tap Changer (+/-2.5% or +/-5.0% or +7.5%),
    • HV Indoor Cable Box or Outdoor Bushing Terminals
    • LV Outdoor Bushing Terminal for Neutral Earthing
    • LV Indoor Cable Box or Bus-Duct Adaptor Box
    • Conservator with Plain Oil-level Gauge (POG)
    • Skid Base with Bi-directional Rollers
    • Tank Lifting Lugs & Jacking Pads
    • Oil Drain & Filtration Valve
    • Rating & Diagram Plate
    • Thermometer Pocket
    • Dehydrant Breather
    • Earthing Terminals

Optional Accessories:

    • Oil Temperature Indicator (OTI)
    • Winding Temperature Indicator (WTI)
    • Gas/Liquid Operated Relay (GOR)
    • Magnetic Oil-level Gauge (MOG)
    • Pressure Relief Device (PRD)
    • On-Load Tap Changer (OLTC)
    • Remote Tap Changer Control Panel (RTCC)
    • Window Annunciation in Control Panel
    • Air Forced Cooling Fans
    • Fan Control Panel
    • Marshalling Box
    • Radiator Shut-Off Valves
